斜齒輪蝸輪蝸桿減速機電機

















			網站首頁 > BOSERL減速機 > 齒輪蝸輪蝸桿減速機廠家 > SA系列減速機廠家






















				SA37DV71S4詳細信息






























                                        prevnext

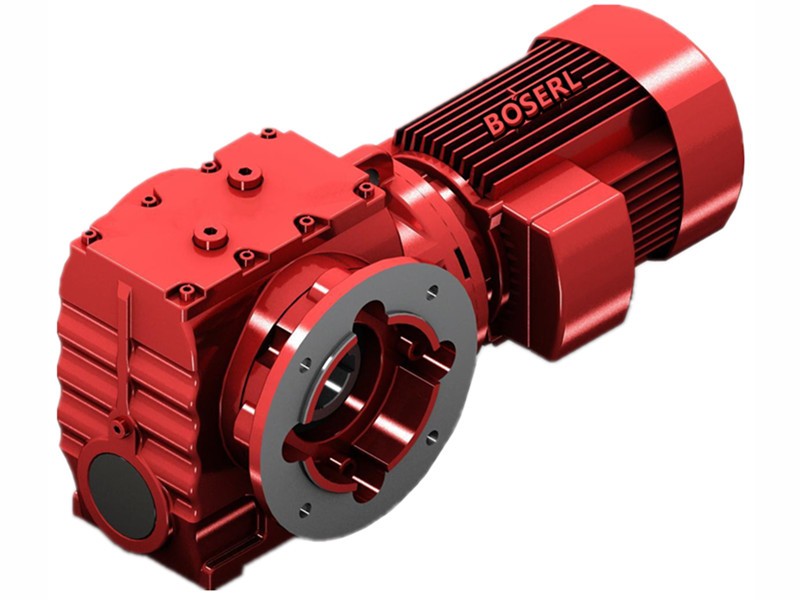

      SA37DV71S4















							訂購熱線：13360667204



























      1. 詳細信息
        2.












      關鍵詞：5.5千瓦調速電機減速器一體機_SA37DV71S4_SA37DM71S4
      SA37DV71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      SA37DV71S498.800.25KW13.0rpm108N.m17kg3000N
      		0.80
      SA37DV71S486.360.25KW15.0rpm96N.m17kg3000N0.90
      SA37DV71S480.96
      		0.25KW16.0rpm91N.m17kg3000N0.95
      SA37DV71S471.440.25KW18.0rpm81N.m17kg3000N
      		1.05
      SA37DV71S463.330.25KW21.0rpm73N.m17kg3000N1.10
      SA37DV71S455.930.25KW23.0rpm78N.m17kg3000N1.05
      SA37DV71S451.300.25KW25.0rpm72N.m17kg3000N
      		1.15
      SA37DV71S443.680.25KW30.0rpm62N.m17kg3000N1.30
      SA37DV71S437.660.25KW35.0rpm54N.m17kg3000N1.45
      SA37DV71S435.100.25KW37.0rpm51N.m17kg3000N
      		1.55
      SA37DV71S430.680.25KW42.0rpm45N.m17kg3000N1.70
      SA37DV71S428.760.25KW45.0rpm42N.m17kg3000N1.80
      SA37DV71S425.380.25KW51.0rpm37N.m17kg3000N
      		2.00
      SA37DV71S422.500.25KW58.0rpm33N.m17kg3000N2.20
      SA37DV71S419.890.25KW65.0rpm32N.m17kg2870N1.65
      SA37DV71S418.240.25KW71.0rpm29N.m17kg2820N1.80
      SA37DV71S415.530.25KW84.0rpm25N.m17kg2710N2.00
      SA37DV71S413.390.25KW97.0rpm22N.m17kg2620N2.30
      SA37DV71S412.480.25KW104rpm20N.m17kg2570N2.40
      SA37DV71S410.910.25KW119rpm18N.m17kg2480N2.70
      SA37DV71S410.230.25KW127rpm17N.m17kg2440N2.80
      SA37DV71S49.020.25KW144rpm15N.m17kg2360N3.10
      SA37DV71S48.000.25KW162rpm13N.m17kg2280N3.40
      SA37DV71S46.800.25KW191rpm11N.m17kg2180N3.80
      SA37DM71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      SA37DM71S498.800.25KW13.0rpm108N.m17kg3000N
      		0.80
      SA37DM71S486.360.25KW15.0rpm96N.m17kg3000N0.90
      SA37DM71S480.96
      		0.25KW16.0rpm91N.m17kg3000N0.95
      SA37DM71S471.440.25KW18.0rpm81N.m17kg3000N
      		1.05
      SA37DM71S463.330.25KW21.0rpm73N.m17kg3000N1.10
      SA37DM71S455.930.25KW23.0rpm78N.m17kg3000N1.05
      SA37DM71S451.300.25KW25.0rpm72N.m17kg3000N
      		1.15
      SA37DM71S443.680.25KW30.0rpm62N.m17kg3000N1.30
      SA37DM71S437.660.25KW35.0rpm54N.m17kg3000N1.45
      SA37DM71S435.100.25KW37.0rpm51N.m17kg3000N
      		1.55
      SA37DM71S430.680.25KW42.0rpm45N.m17kg3000N1.70
      SA37DM71S428.760.25KW45.0rpm42N.m17kg3000N1.80
      SA37DM71S425.380.25KW51.0rpm37N.m17kg3000N
      		2.00
      SA37DM71S422.500.25KW58.0rpm33N.m17kg3000N2.20
      SA37DM71S419.890.25KW65.0rpm32N.m17kg2870N1.65
      SA37DM71S418.240.25KW71.0rpm29N.m17kg2820N1.80
      SA37DM71S415.530.25KW84.0rpm25N.m17kg2710N2.00
      SA37DM71S413.390.25KW97.0rpm22N.m17kg2620N2.30
      SA37DM71S412.480.25KW104rpm20N.m17kg2570N2.40
      SA37DM71S410.910.25KW119rpm18N.m17kg2480N2.70
      SA37DM71S410.230.25KW127rpm17N.m17kg2440N2.80
      SA37DM71S49.020.25KW144rpm15N.m17kg2360N3.10
      SA37DM71S48.000.25KW162rpm13N.m17kg2280N3.40
      SA37DM71S46.800.25KW191rpm11N.m17kg2180N3.80
      SA37DV71S4齒輪減速機馬達類型：
      S..DR..底腳安裝斜齒輪自鎖減速機
      SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
      SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
      SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
      SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
      SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
      SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
      SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
      SA37DV71S4齒輪減速機馬達安裝尺寸圖紙
      SA37DV71S4齒輪減速機馬達生產工廠展示：看廠請提前三天預約
      二級減速機應用案例展示：
      關鍵詞:SA系列減速機_二級減速器與電機_雙極減速機電機一套_二級減速機_二極減速機_雙級減速機_SA系列減速機生產廠家
      SA系列減速機型號：SA37減速機,SA47減速機,SA57減速機,SA67減速機,SA77減速機,SA87減速機,SA97減速機
      SA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間

      如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


      標簽:  5.5千瓦調速電機減速器一體機 SA37DV71S4 SA37DM71S4



























      跟此產品相關的文檔 / Related DownLoad














									產品文件名稱





									點擊下載













									SA37DV71S4減速機樣本







										點擊下載















									SA37DV71S4減速機三維圖紙







										點擊下載
