傘齒輪斜齒輪減速機電機

















			網站首頁 > BOSERL減速機 > 傘齒輪斜齒輪減速機廠家 > KAF系列減速機廠家






















				KAF37DM71S4詳細信息






























                                        prevnext

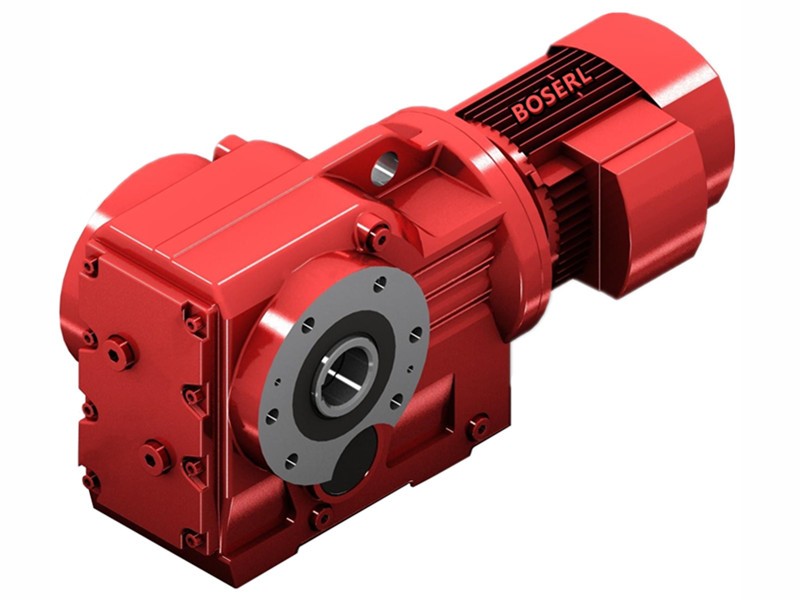

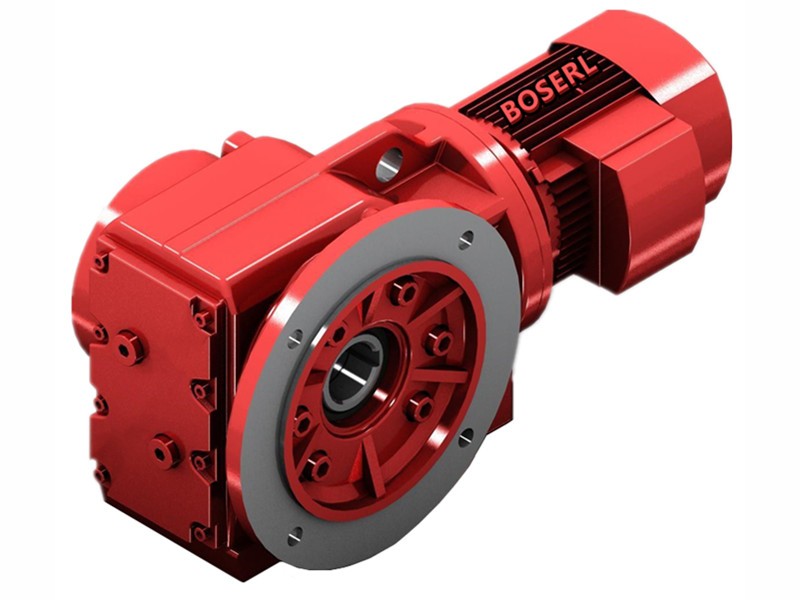

      KAF37DM71S4















							訂購熱線：13360667204



























      1. 詳細信息
        2.












      關鍵詞：懸掛13噸負載電機減速機_KAF37DM71S4_KAF37DT71S4
      KAF37DM71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      KAF37DM71S497.810.37kw14rpm250N.m19kg2520N0.8
      KAF37DM71S483.690.37kw16rpm210N.m19kg5470N0.95
      KAF37DM71S472.540.37kw19rpm186N.m19kg5690N1.1
      KAF37DM71S467.80.37kw20rpm174N.m19kg5630N1.15
      KAF37DM71S458.60.37kw24rpm150N.m19kg5500N1.35
      KAF37DM71S449.790.37kw28rpm128N.m19kg5350N1.55
      KAF37DM71S444.460.37kw31rpm114N.m19kg5230N1.75
      KAF37DM71S437.970.37kw36rpm97N.m19kg5060N2.1
      KAF37DM71S435.570.37kw39rpm91N.m19kg4990N2.2
      KAF37DM71S429.960.37kw46rpm77N.m19kg4800N2.6
      KAF37DM71S428.830.37kw48rpm74N.m19kg4750N2.7
      KAF37DM71S424.990.37kw55rpm64N.m19kg4590N3.1
      KAF37DM71S423.360.37kw59rpm60N.m19kg4510N3.3
      KAF37DM71S420.190.37kw68rpm52N.m19kg4350N3.6
      KAF37DM71S417.150.37kw80rpm44N.m19kg4160N4.1
      KAF37DM71S415.310.37kw90rpm39N.m19kg4040N4.5
      KAF37DM71S413.080.37kw105rpm34N.m19kg3860N4.9
      KAF37DM71S412.140.37kw114rpm31N.m19kg3780N5.1
      KAF37DM71S410.490.37kw132rpm27N.m19kg3630N6
      KAF37DM71S48.910.37kw155rpm23N.m19kg3460N7
      KAF37DM71S47.96
      		0.37kw173rpm20N.m19kg3350N7.6
      KAF37DM71S46.8
      		0.37kw203rpm17N.m19kg3190N8.6
      KAF37DM71S46.370.37kw217rpm16N.m19kg3130N8.9
      KAF37DM71S45.360.37kw257rpm14N.m19kg2970N10
      KAF37DT71S4減速機電機參數：
      型號減速比功率轉數扭矩重量力矩安全系數
      KAF37DT71S497.810.37kw14rpm250N.m19kg2520N0.8
      KAF37DT71S483.690.37kw16rpm210N.m19kg5470N0.95
      KAF37DT71S472.540.37kw19rpm186N.m19kg5690N1.1
      KAF37DT71S467.80.37kw20rpm174N.m19kg5630N1.15
      KAF37DT71S458.60.37kw24rpm150N.m19kg5500N1.35
      KAF37DT71S449.790.37kw28rpm128N.m19kg5350N1.55
      KAF37DT71S444.460.37kw31rpm114N.m19kg5230N1.75
      KAF37DT71S437.970.37kw36rpm97N.m19kg5060N2.1
      KAF37DT71S435.570.37kw39rpm91N.m19kg4990N2.2
      KAF37DT71S429.960.37kw46rpm77N.m19kg4800N2.6
      KAF37DT71S428.830.37kw48rpm74N.m19kg4750N2.7
      KAF37DT71S424.990.37kw55rpm64N.m19kg4590N3.1
      KAF37DT71S423.360.37kw59rpm60N.m19kg4510N3.3
      KAF37DT71S420.190.37kw68rpm52N.m19kg4350N3.6
      KAF37DT71S417.150.37kw80rpm44N.m19kg4160N4.1
      KAF37DT71S415.310.37kw90rpm39N.m19kg4040N4.5
      KAF37DT71S413.080.37kw105rpm34N.m19kg3860N4.9
      KAF37DT71S412.140.37kw114rpm31N.m19kg3780N5.1
      KAF37DT71S410.490.37kw132rpm27N.m19kg3630N6
      KAF37DT71S48.910.37kw155rpm23N.m19kg3460N7
      KAF37DT71S47.96
      		0.37kw173rpm20N.m19kg3350N7.6
      KAF37DT71S46.8
      		0.37kw203rpm17N.m19kg3190N8.6
      KAF37DT71S46.370.37kw217rpm16N.m19kg3130N8.9
      KAF37DT71S45.360.37kw257rpm14N.m19kg2970N10
      KAF37DM71S4減速機類型：
      K..DR..底腳安裝斜齒輪—傘齒輪減速電機
      KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
      KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
      KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
      KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
      KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
      KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
      KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
      KA..DR..空心軸斜齒輪─傘齒輪減速電機
      KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
      KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
      KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
      KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
      KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
      KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
      KAF37DM71S4減速機馬達安裝尺寸圖紙
      KAF37DM71S4減速機生產工廠展示：看廠請提前三天預約
      大減速比減速機應用案例展示：
      關鍵詞:KAF系列減速機_大減速比減速機與電機_大速比減速機電機一套_大減速比減速器_大比數減速機_大比數減速器_大速比減速器生產廠家
      KAF系列減速機型號：KAF37減速機,KAF47減速機,KAF57減速機,KAF67減速機,KAF77減速機,KAF87減速機,KAF97減速機,KAF107減速機,KAF127減速機,KAF157減速機,KAF167減速機,KAF187減速機
      KAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
      如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


      標簽:  懸掛13噸負載電機減速機 KAF37DM71S4 KAF37DT71S4



























      跟此產品相關的文檔 / Related DownLoad














									產品文件名稱





									點擊下載













									KAF37DM71S4減速機樣本







										點擊下載















									KAF37DM71S4三維圖紙







										點擊下載
