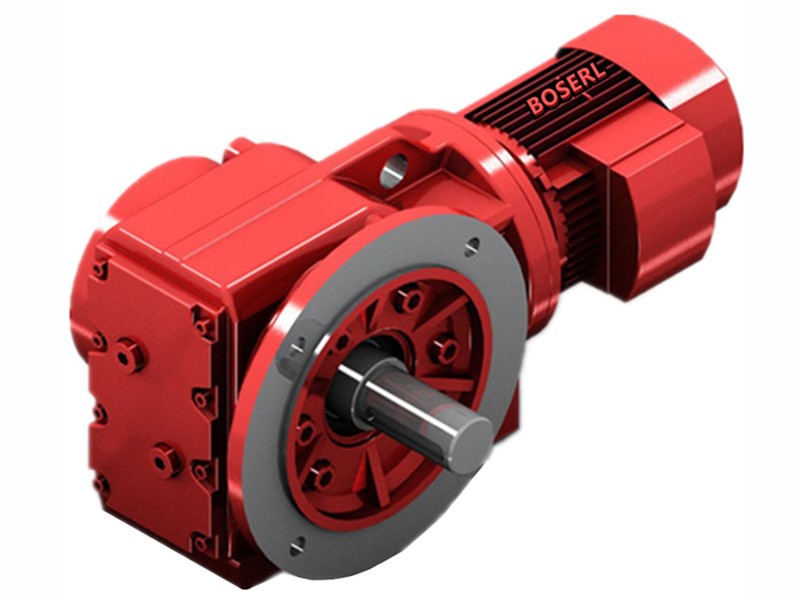

K77DM132MC4詳細信息
K77DM132MC4
關鍵詞：輸出8100N.m減速機電機_K77DM132MC4_K77DM132ML4
K77DM132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K77DM132MC4 | 30.89 | 7.5KW | 47rpm | 1530N.m | 110Kg | 15500N | 1 |
| K77DM132MC4 | 29.27 | 7.5KW | 49rpm | 1450N.m | 110Kg | 16000N | 1.05 |
| K77DM132MC4 | 25.62 | 7.5KW | 56rpm | 1260N.m | 110Kg | 17100N | 1.2 |
| K77DM132MC4 | 23.08 | 7.5KW | 63rpm | 1140N.m | 110Kg | 17700N | 1.35 |
| K77DM132MC4 | 20.25 | 7.5KW | 71rpm | 1000N.m | 110Kg | 18300N | 1.5 |
| K77DM132MC4 | 17.87 | 7.5KW | 81rpm | 880N.m | 110Kg | 18500N | 1.65 |
| K77DM132MC4 | 15.84 | 7.5KW | 91rpm | 780N.m | 110Kg | 18200N | 1.8 |
| K77DM132MC4 | 13.52 | 7.5KW | 107rpm | 670N.m | 110Kg | 17700N | 2 |
| K77DM132MC4 | 12.36 | 7.5KW | 117rpm | 610N.m | 110Kg | 17000N | 1.65 |
| K77DM132MC4 | 10.84 | 7.5KW | 133rpm | 535N.m | 110Kg | 16600N | 1.85 |
| K77DM132MC4 | 9.56 | 7.5KW | 151rpm | 470N.m | 110Kg | 16300N | 2 |
| K77DM132MC4 | 8.48 | 7.5KW | 170rpm | 420N.m | 110Kg | 15900N | 2.1 |
| K77DM132MC4 | 7.24 | 7.5KW | 200rpm | 355N.m | 110Kg | 15400N | 2.3 |
K77DM132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K77DM132ML4 | 30.89 | 7.5KW | 47rpm | 1530N.m | 110Kg | 15500N | 1 |
| K77DM132ML4 | 29.27 | 7.5KW | 49rpm | 1450N.m | 110Kg | 16000N | 1.05 |
| K77DM132ML4 | 25.62 | 7.5KW | 56rpm | 1260N.m | 110Kg | 17100N | 1.2 |
| K77DM132ML4 | 23.08 | 7.5KW | 63rpm | 1140N.m | 110Kg | 17700N | 1.35 |
| K77DM132ML4 | 20.25 | 7.5KW | 71rpm | 1000N.m | 110Kg | 18300N | 1.5 |
| K77DM132ML4 | 17.87 | 7.5KW | 81rpm | 880N.m | 110Kg | 18500N | 1.65 |
| K77DM132ML4 | 15.84 | 7.5KW | 91rpm | 780N.m | 110Kg | 18200N | 1.8 |
| K77DM132ML4 | 13.52 | 7.5KW | 107rpm | 670N.m | 110Kg | 17700N | 2 |
| K77DM132ML4 | 12.36 | 7.5KW | 117rpm | 610N.m | 110Kg | 17000N | 1.65 |
| K77DM132ML4 | 10.84 | 7.5KW | 133rpm | 535N.m | 110Kg | 16600N | 1.85 |
| K77DM132ML4 | 9.56 | 7.5KW | 151rpm | 470N.m | 110Kg | 16300N | 2 |
| K77DM132ML4 | 8.48 | 7.5KW | 170rpm | 420N.m | 110Kg | 15900N | 2.1 |
| K77DM132ML4 | 7.24 | 7.5KW | 200rpm | 355N.m | 110Kg | 15400N | 2.3 |

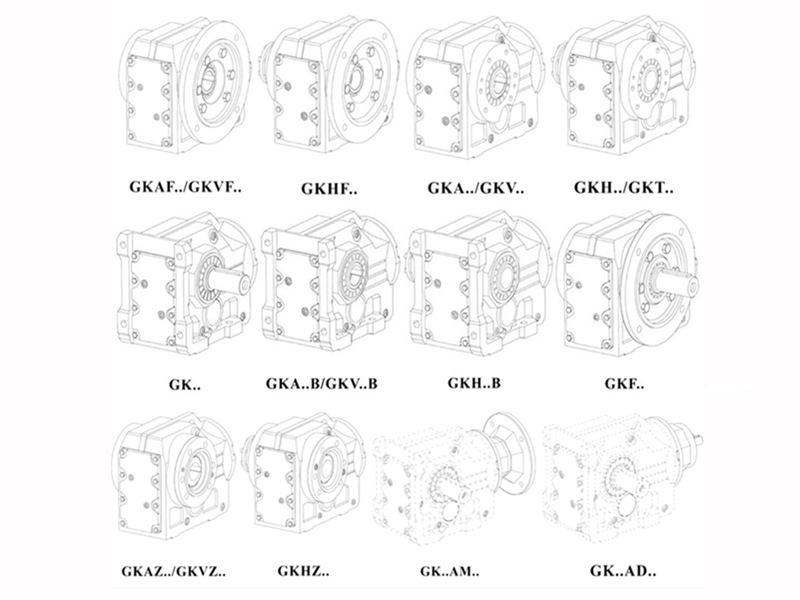

K77DM132MC4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
K77DM132MC4減速機馬達安裝尺寸圖紙
K77DM132MC4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
K系列減速機應用案例展示：
關鍵詞:K系列減速機與電機_傳動箱_傳動角箱_傳動減速機電機一套_傳動減速器_螺旋錐齒輪減速機_K系列減速機生產廠家
K系列減速機型號：K37減速機,K47減速機,K57減速機,K67減速機,K77減速機,K87減速機,K97減速機,K107減速機,K127減速機,K157減速機,K167減速機,K187減速機
K系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出8100N.m減速機電機 K77DM132MC4 K77DM132ML4
