FAF87DRE180LC4詳細信息
FAF87DRE180LC4
關鍵詞：羊飼料攪拌機減速機電機_FAF87DRE180LC4_FAF87DRN180LC4
FAF87DRE180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF87DRE180LC4 | 21.32 | 22KW | 69.0rpm | 3030N.m | 335kg | 9020N | 1.00 |
| FAF87DRE180LC4 | 19.31 | 22KW | 76.0rpm | 2740N.m | 335kg | 9450N | 1.10 |
| FAF87DRE180LC4 | 17.12 | 22KW | 86.0rpm | 2430N.m | 335kg | 9870N | 1.25 |
| FAF87DRE180LC4 | 15.48 | 22KW | 95.0rpm | 2200N.m | 335kg | 10100N | 1.35 |
| FAF87DRE180LC4 | 13.12 | 22KW | 112rpm | 1860N.m | 335kg | 10400N | 1.60 |
| FAF87DRE180LC4 | 11.46 | 22KW | 129rpm | 1630N.m | 335kg | 10600N | 1.85 |
| FAF87DRE180LC4 | 9.58 | 22KW | 154rpm | 1360N.m | 335kg | 10600N | 2.10 |
| FAF87DRE180LC4 | 8.29 | 22KW | 178rpm | 1180N.m | 335kg | 10100N | 1.30 |
| FAF87DRE180LC4 | 7.35 | 22KW | 201rpm | 1040N.m | 335kg | 10100N | 1.45 |
| FAF87DRE180LC4 | 6.65 | 22KW | 222rpm | 940N.m | 335kg | 10000N | 1.60 |
| FAF87DRE180LC4 | 5.63 | 22KW | 262rpm | 800N.m | 335kg | 9890N | 1.90 |
| FAF87DRE180LC4 | 4.92 | 22KW | 300rpm | 700N.m | 335kg | 9740N | 2.20 |
| FAF87DRE180LC4 | 4.12 | 22KW | 358rpm | 585N.m | 335kg | 9490N | 2.50 |
FAF87DRN180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF87DRN180LC4 | 21.32 | 22KW | 69.0rpm | 3030N.m | 335kg | 9020N | 1.00 |
| FAF87DRN180LC4 | 19.31 | 22KW | 76.0rpm | 2740N.m | 335kg | 9450N | 1.10 |
| FAF87DRN180LC4 | 17.12 | 22KW | 86.0rpm | 2430N.m | 335kg | 9870N | 1.25 |
| FAF87DRN180LC4 | 15.48 | 22KW | 95.0rpm | 2200N.m | 335kg | 10100N | 1.35 |
| FAF87DRN180LC4 | 13.12 | 22KW | 112rpm | 1860N.m | 335kg | 10400N | 1.60 |
| FAF87DRN180LC4 | 11.46 | 22KW | 129rpm | 1630N.m | 335kg | 10600N | 1.85 |
| FAF87DRN180LC4 | 9.58 | 22KW | 154rpm | 1360N.m | 335kg | 10600N | 2.10 |
| FAF87DRN180LC4 | 8.29 | 22KW | 178rpm | 1180N.m | 335kg | 10100N | 1.30 |
| FAF87DRN180LC4 | 7.35 | 22KW | 201rpm | 1040N.m | 335kg | 10100N | 1.45 |
| FAF87DRN180LC4 | 6.65 | 22KW | 222rpm | 940N.m | 335kg | 10000N | 1.60 |
| FAF87DRN180LC4 | 5.63 | 22KW | 262rpm | 800N.m | 335kg | 9890N | 1.90 |
| FAF87DRN180LC4 | 4.92 | 22KW | 300rpm | 700N.m | 335kg | 9740N | 2.20 |
| FAF87DRN180LC4 | 4.12 | 22KW | 358rpm | 585N.m | 335kg | 9490N | 2.50 |
FAF87DRE180LC4電機減速器類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

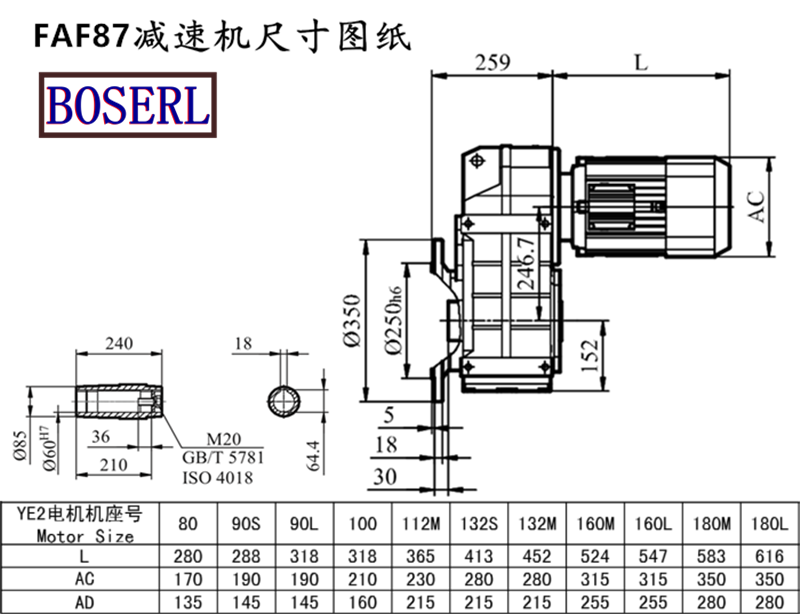

FAF87DRE180LC4電機減速器安裝尺寸圖紙
FAF87DRE180LC4電機減速器生產廠家，看廠請?zhí)崆叭祛A約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 羊飼料攪拌機減速機電機 FAF87DRE180LC4 FAF87DRN180LC4
